Metal detector for big packaging product-chinepack food machinery

The model is suitable for more 25kg each package specially.

model	CP9H5015		CP9H5015	CP9H5025	CP9H5030	CP9H6020	CP9H6030		CP9H6035
Pass width	500 mm		500 mm	500 mm	500 mm	600 mm	600 mm	600 mm
Pass height	150 mm		200 mm	250 mm	300 mm	200 mm	300 mm		350 mm
belt width	470 mm		470 mm	470 mm	470 mm	570 mm	570 mm		570 mm
sensitivity	fe	1.0 mm	1.2 mm	1.5 mm	1.6 mm	1.2 mm	1.6 mm		1.8 mm
	n-fe	1.5 mm	1.8 mm	2.0 mm	2.3 mm	1.8 mm	2.3 mm		2.5 mm
	sus	2.0 mm	2.3 mm	2.5 mm	3.0 mm	2.3 mm	3.0 mm		3.0 mm
lengthof conveyor		1700 mm	1700 mm	1700 mm	1700 mm	2000 mm	2000 mm		2000 mm
heightof belt		750±50 mm
record		100 kind
proof		IP65
Belt speed		20m/min(optionnal speed control device,5~40m/min)
reject method		alarm withsoundand light,stop the beltor autorejectoroptional.
note		customersize available

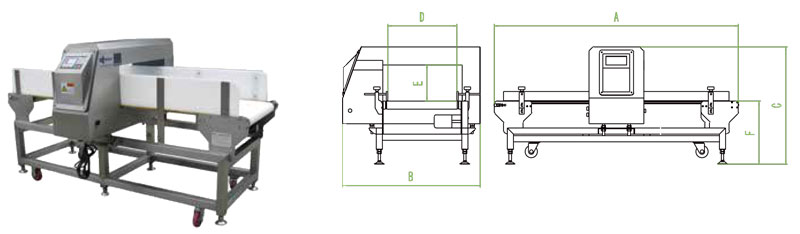

Metal detector for big packaging product
