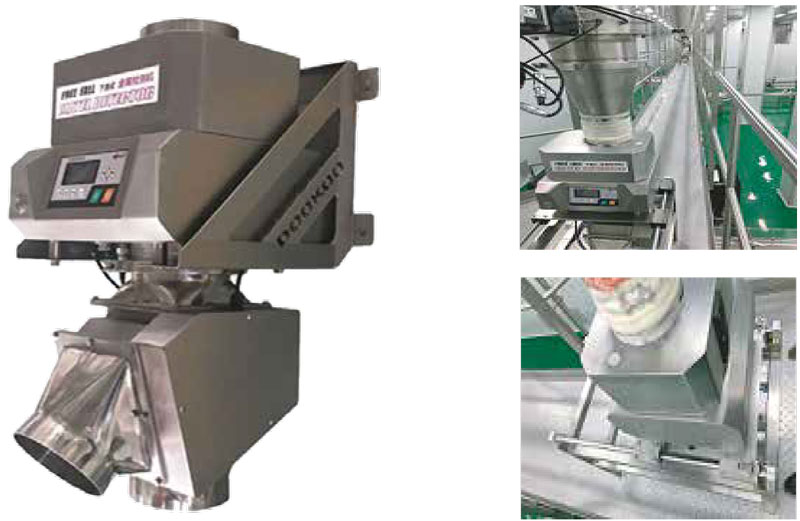

CP9T serials metal detector is special for powdered, granular materials online metal impurities detection and separation,
according to therequirement of the powdery material usually requires the detection of stainless steel mesh wire breaking.
Istalled in the material pipeline transportation line, can detect very small metal impurities,automatic remove metal impurities.
| model | CP9T80 | CP9T100 | CP9T150 | CP9T200 | ||||||
| Diameter of pipe | 80 mm | 100 mm | 150 mm | 205 mm | ||||||
| sensitivity | fe | 0.6 mm | 0.7 mm | 0.8 mm | 1.0 mm | |||||
| n-fe | 0.8 mm | 0.9 mm | 1.0 mm | 1.5 mm | ||||||
| sus | 1.0 mm | 1.2 mm | 1.5 mm | 2.0 mm | ||||||
| (m³/h)speed(cubic/hour) | 7 | 10 | 20 | 30 | ||||||
| record | 100 kind | |||||||||
| proof | IP67 | |||||||||
| reject method | air sway board reject | |||||||||
| suitable for | bulk powder or granular products | |||||||||
| environment | temperature:-18~50°C relative humidity:<90% | |||||||||
| note | customersize available | |||||||||
