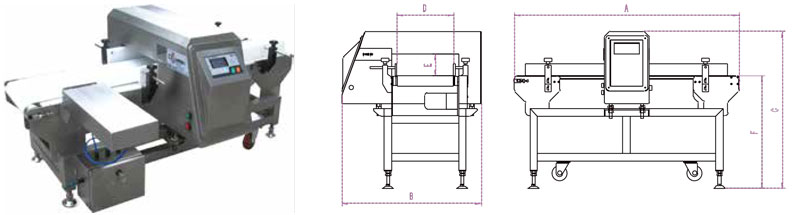

Metal detector(Europe Model)-chinepack food machinery

Metal detector CP9A series is suitable for the food industry with high requirements for metal detection,

and is especially created for high-end brandenterprises from home and abroad.

Features and advantages:

1.Advanced technology.It appiles the latest mutiple-frequencyd etection technology.the material effect automaticelminating technology.

theautomatic balancing technology and the selt- adaptive adjustment technology ,

whichrender the simplest operation,best environment suiabily and strongeststability of the equipment in the industry;

2. Easy operation. As the product has the unique one -touch automatice setup function(aunique patented technology of Dkoo),

it may automalicalyadjust to the best detecting state tor products passing the detecting area for only once,in ralization ofoooperation;

3.High sensitivity. the best detecion senstivity and bell product detection sesitvity or metal detor

DK9A series are two or three times higherthan those of other similar products;

4.Good protection of grade IP67.The low energy- consumtion and ull-closuredesingn and the structure

of the equipment ensure good protectveeftect. Original waterproot motor imported from Japan and originaladaptability of the whole machine.

model	CP9A3008		CP9A3012	CP9A4008	CP9A4012	CP9A4015	CP9A4020
Pass width	300 mm		300 mm	400 mm
Pass height	80 mm		120 mm	80 mm	120 mm	150 mm	200 mm
belt width	270 mm		270 mm	370 mm	370 mm	370 mm	370 mm
sensitivity	fe	0.6 mm	0.7 mm	0.6 mm	0.7 mm	0.8 mm	1.0 mm
	n-fe	0.8 mm	1.0 mm	0.8 mm	1.0 mm	1.2 mm	1.5 mm
	sus	1.0 mm	1.2 mm	1.0 mm	1.2 mm	1.5 mm	2.0 mm
lengthof conveyor		1200 mm	1200 mm	1500 mm	1500 mm	1500 mm	1500 mm
heightof belt		750±50 mm
record		100 kind
proof		IP67
Belt speed		27m/min(optionnal speed control device)
reject method		alarm withsoundand light,stop the beltor autorejectoroptional.
note		customersize available

Metal detector(Europe Model)
