Products Detailed:
Cereal bar,granola bar,candy bar, energy bar slab bar Forming machine.
Machine Application:
This is the bar forming machine, mainly used to produce the slab bar like cereal bar,granola bar,snicker,protein bar, energy bar, square shape candy etc.

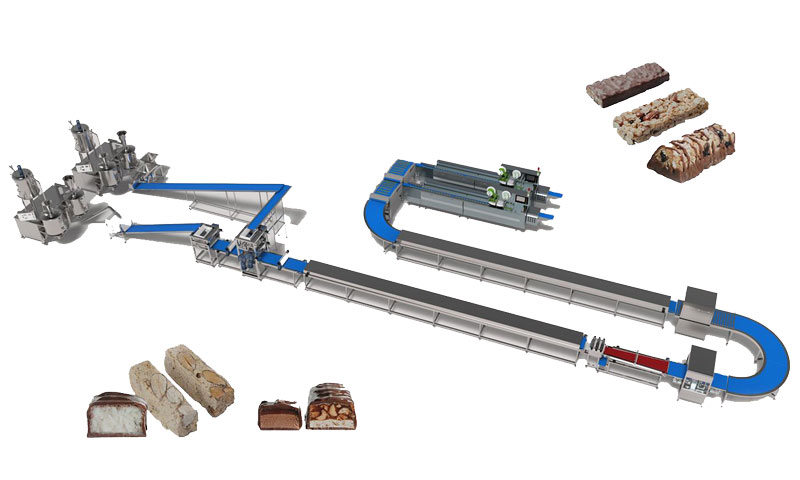

Automatic cereal bar, granola bar, muesli bar, snicker, protein bar, energy bar machine.
The main part on the machine is as below:

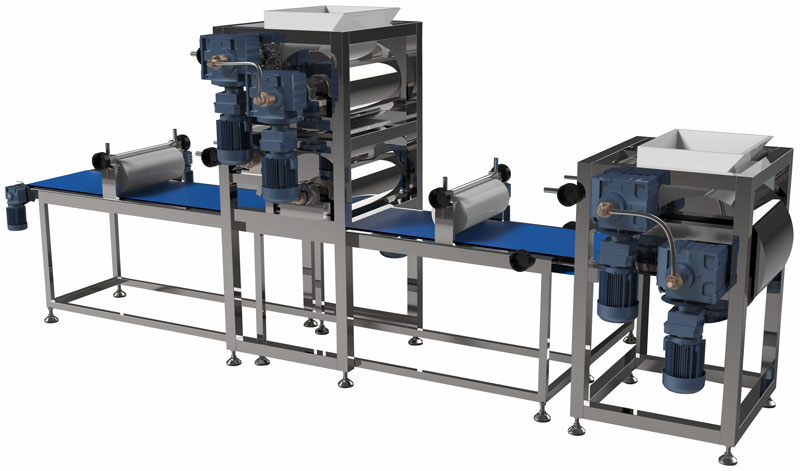

1.compound forming rollers unit and pressed rollers( stainless steel 304 or Iron teflon coating according to different product)
2.cooling and conveying.

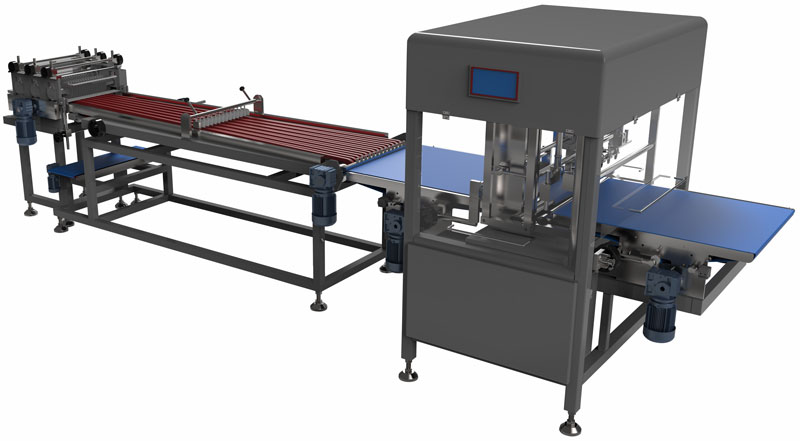

3.longitudinal cutting and spreading
4.transversal cutting(ultrasonic knife or general stainless steel knife for the choice)
5.chocolate enrobing and cooling
6.Distribution and packing
the technical data for the forming rollers as below:
| Product description | Forming rollers for 550mm bar mass before spreading |
| Roller Diameters*Width | First roller：φ700*Width：600mm Second roller:φ350*Width：550mm(can be customized according to requirement)
|
| Output candy bar width | 550mm |
| Candy bar thickness adjusting scope | 5mm-40mm |
| Roller Materials | 304 stainless steel |
| Roller stainless steel thickness | 15mm |
| Jacket layer thickness | 30mm |
| Roller Coating | Teflon coating by Dupont |
| Roller speed | 3-6M/Min |
| Motor power | 370W |
| Motor brand | ABB |
| Cooling medium | Ice water, glycol, etc. |
| Complete dimension | 800*1300*1500mm |
| Complete Weight | 300kg |
the technical date for the longitudinal and transversal cutter specifications as below:
| Product Description | For bar mass 550mm before spreading |
| Machine materials | SS 304 |
| Longitudinal Knives coating | Teflon coating by Dupont |
| Cutting Length | 20-200mm |
| Product Width | Customized according to client's requirement |
| Transversal Cutting speed | Ultrasonic cutter:80times/min,General stainless steel cutter:100 times/min |
| Servo Motor Brand | Panasonic |
| Electrical parts | Schneider or Omron |
| Power | Two servo motors: one is 1.5kw,another is 4.5kw |
| Longitudinal cutting machine(slitting machine) | 3400*1200*1600mm |
| Transversal cutting machine | 2000*1200*2000mm |

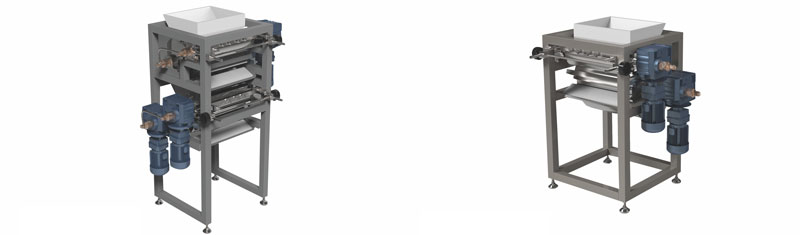

| product | four rollers forming units | |
| model | CP-FT500 | CP-FT800 |
| mass width | 340mm | 540mm |
| rollers dimension | Ф350*340mm*2pcs Ф500*380mm*2pcs | Ф350*540mm*2pcs Ф500*540mm*2pcs |
| hopper volume | 20KG | 30KG |
| roller speed | 3-6meters/min(frequency converter speed adjustable) | 3-6meters/min(frequency converter speed adjustable) |
| motor power | 370W*4 | 370W*4 |
| mass thickness scope | 5-20mm(adjustable) | 5-20mm(adjustable) |
| machine dimension | 800*1200*1400mm | 800*1400*1500mm |
| roller jacket layer thickness | 30mm | 30mm |
| rooler materials | stainless steel or lron teflon coating | |
| cooling medium | lce water or glycol | |
| product | double rollers forming units | |
| model | CP-F500 | CP-F800 |
| mass width | 340mm | 540mm |
| rollers dimension | upper roller:Ф350*340mm nether roller:Ф500*380mm | upper roller:Ф500*540mm nether roller:Ф700*540mm |
| hopper volume | 20KG | 30KG |
| roller speed | 3-6meters/min(frequency converter speed adjustable) | 3-6meters/min(frequency converter speed adjustable) |
| motor power | upper roller:370W nether roller:370W | upper roller:550W nether roller:550W |
| mass thickness scope | 5-20mm(adjustable) | 5-20mm(adjustable) |
| machine dimension | 800*1200*1400mm | 800*1400*1500mm |
| roller jacket layer thickness | 30mm | 30mm |
| rooler materials | stainless steel or lron teflon coating | |
| cooling medium | lce water or glycol | |

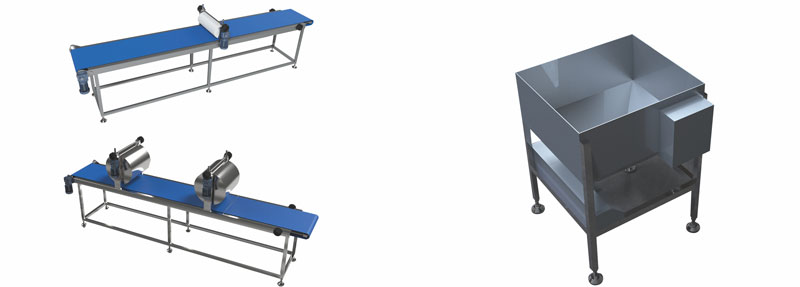

| rollers dimension | Ф220 or 350mm |
| motor power | 370w |
| belt power | 550w |
| belt materials | silica gel belt |
| hopper volume | 50kg |
| heat power | 3kw |
| structure materials | outer 304 stainless,inner teflon coating |
| machine size | 1000*1000*800mm |
| machine weight | 200kg |

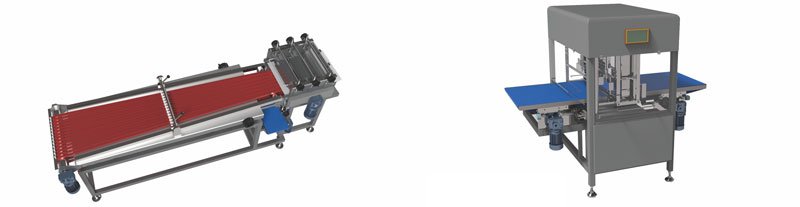

| model | CP-S500 | CP-S800 |
| mass width | 340mm | 540mm |
| slitting knife motor | 0.75kw | 1.1kw |
| belt motor | 0.55kw | 0.75kw |
| mass spreading width | customized according to product | |
| machine dimension | 3200*750*1600mm | 3200*1200*1600mm |
| machine weight | 550kg | 650kg |
| model | CP-T500 | CP-T800 |
| cutting width | 700mm | 1100mm |
| cutting speed | ultrasonic knife:30-80 times/min stainless steel:30-100 times/min | |
| belt motor power | infeed belt:0.37kw discharge belt:0.37kw | infeed belt:0.55kw discharge belt:0.55kw |
| servo motor power | two panasonic servo motors control servo motor:5kw servo motor:1kw | |
| air pressure | 2kg | 2kg |
| machine dimension | 2000*1200*2000mm | 2000*1800*2000mm |
| machine weight | 1000kg | 1200kg |

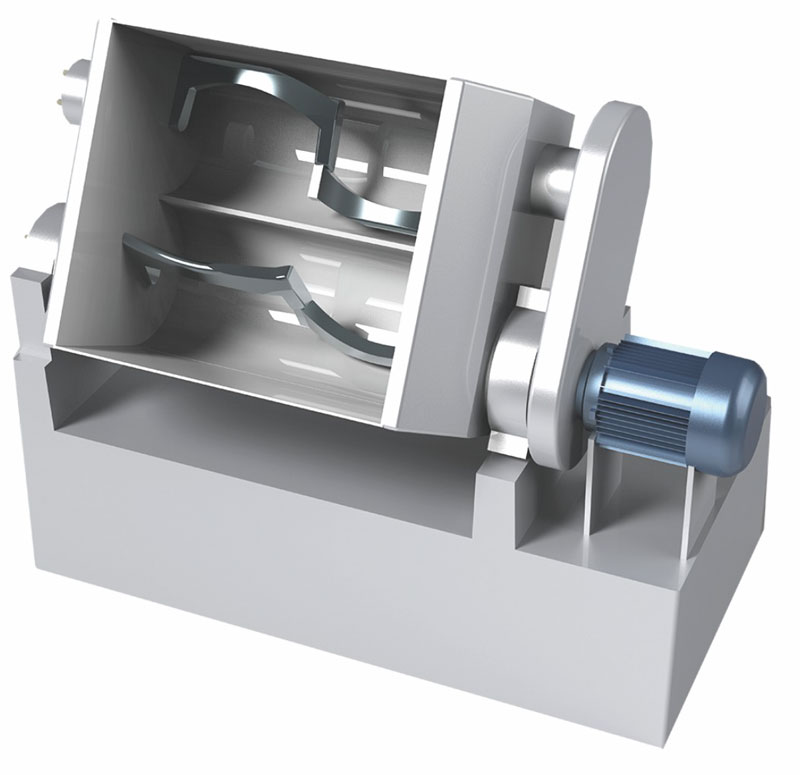

| model | CP-100 |
| Volume | 100L |
| power | 11kw |
| machine dimension | 1200*700*1100mm |

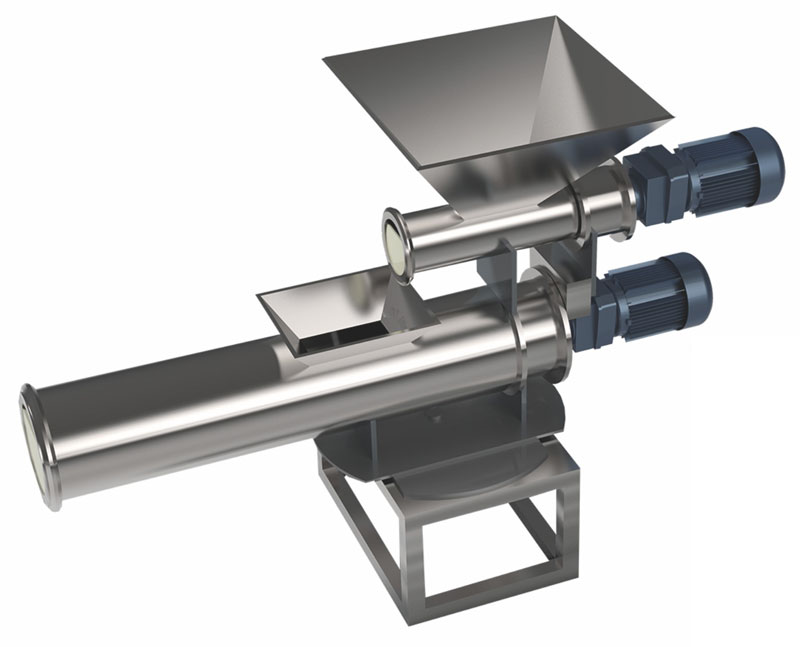

| hopper volume | 30kg |
| power | upper screw motor:0.37kw nether screw motor:0.75kw |
| machine size | 1500*600*1000mm(height canbe designed according to the real condition) |
| machine weight | 200kg |
