Special Suggestion
Special Recommendation: this machine is the upgrade type based on common model SR.
This type machine’s optional device is static generator, which can raise the packing speed to 300bags/min in a size range of products.

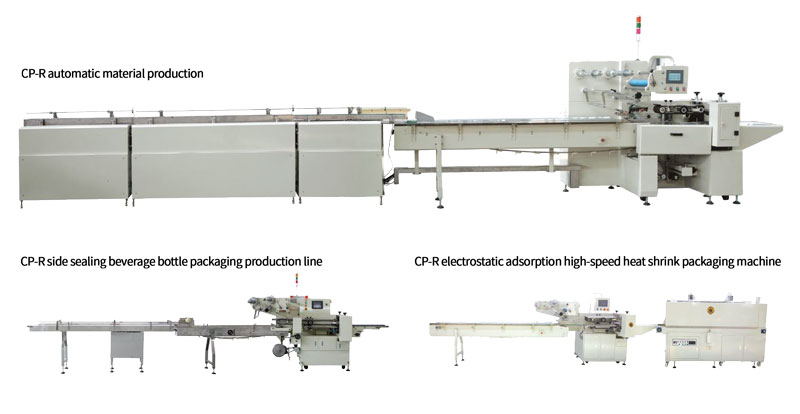

It also can be designed for a whole processing line about some special products, such as milk bottles, beverage bottle.
Characteristic
■ Using servo motor control to achieve step-less speed changing and dynamic adjusting during operation.
■ Large colored touch screen displays all data. It also can store the product-menu. When changing products,
bag length and material supplying position can be adjusted automatically.
■ Timing-belt and timing sprocket drive runs quietly in high speed.
| Model | SR450/99 | SR450/120 | SR450/150 | SR590/120 | SR590/150 | SR590/180 | |
| Packing material width MM | Film width | <450 | <450 | <450 | <590 | <590 | <590 |
| Bag length | Packing Bag Length | 90-400 | 100-400 | 120-450 | 100-400 | 120-450 | 140-480 |
| Package size range | Size of package | W:<150 H:<40 | W:<150 H:<60 | W:<150 H:<75 | W:<200 H:<60 | W:<200 H:<75 | W:<200 H:<100 |
| Packing speed (pack/min) | Speed | 50-180 | 50-150 | 50-150 | 50-150 | 50-150 | 50-150 |
| Dimensions MM | Size | Packing Machine: 5000 x 965 x 1750 | 5000 x 1105 x 1750 | ||||
| Shrink furnace: 2400 x 800 x 1700 | |||||||
| Machine weight | Weight | 1000KG | 1200KG | ||||
| Power supply/power | Power | Packing Machine: 220VAC, 50HZ, 3.66KW, Shrink furnace: 380VAC,50HZ ,16KW | |||||
| Applicable packaging materials | Material | Heat-sealable composite film OPP/PE; PT/PE; AL/PE, etc. | |||||
