Bottom paper automatic packaging machine-chinepack food machinery

Special Suggestion

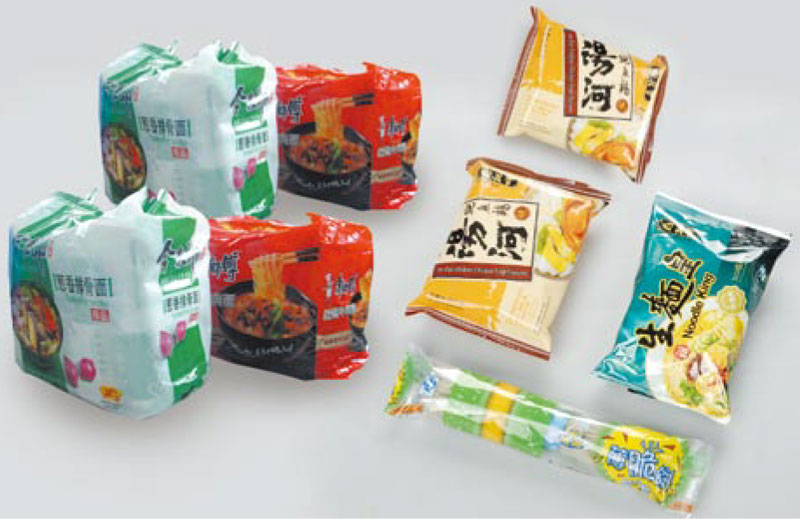

This type of machine is designed for special products wrapping, such as soft products, multi sauces bags instant noodle etc.

Optional Parts

Date printer/film hole cutter

Characteristic

■ Using servo motor control to achieve step-less speed changing and dynamic adjusting during operation.

■ Large colored touch screen displays all data. It also can store the product-menu.

When changing products, bag length and material supplying position can be adjusted automatically.

■ With photo-cell detecting the color mark and dual-tracing system, this machine can effectively eliminate any packing error,

thus promises a high qualified finished product rate.

■ Timing-belt and timing sprocket drive runs quietly in high speed.

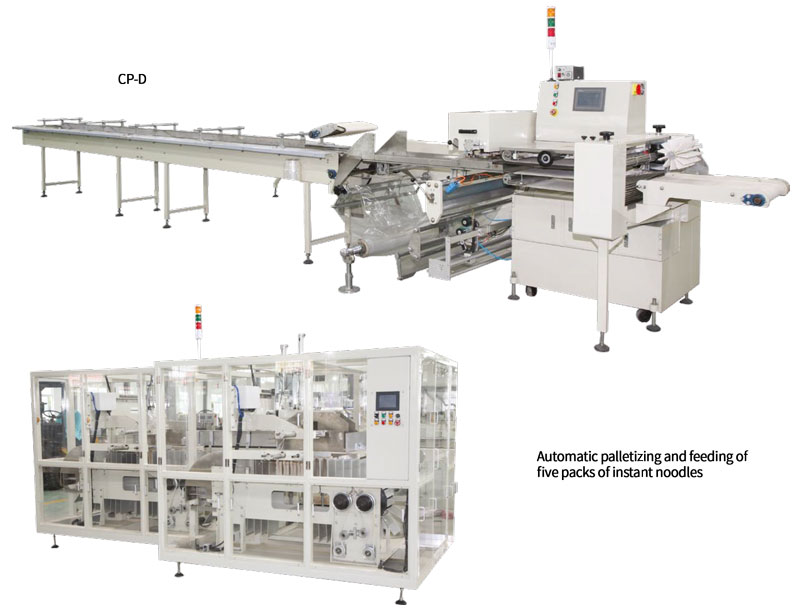

■ The machine can be equipped with single or double servo motors and also be connected

with the automatic supplying system for instant noodle for the processing line.

Model Specification	CP-D2 450/99	CP-D2 450/120	CP-D2 450/150	CP-D2 590/120	CP-D2 590/150	CP-D2 590/180	CP-D2 720/210
Packing material maximum width (mm)	<450	<450	<450	<590	<590	<590	<720
Packing size L: bag length (mm) B: object width (mm) H: object height (mm)	L:90-400 B:10-150 H:5-40	L:100-400 B:10-150 H:15-60	L:120-450 B:10-150 H:30-75	L:100-400 B:30-200 H:15-60	L:120-450 B:30-200 H:30-75	L:140-480 B:30-200 H:40-100	L:180-550 B:50-250 H:50-150
Production capacity (package/min)	30-160	30-140	30-120	30-140	30-120	30-100	25-80
Dimensions (mm)	5000×965×1750 (3m conveyor)			5000×1105×1750 (3m conveyor)			5000×1240 ×1700
Packaging material	Composite film suitable for heat-sealing packaging: paper/PE, OPP/PE, PT/PE, AL/PE, etc.
Total weight (kg)	1000	1000	1000	1200	1200	1200	1300
Motor Power	One main motor 1KW; membrane motor 0.75KW
Electric heating power	450W，2 pcs 400W，4 pcs
power supply	Single phase 220V, 50HZ
Total power	4.5KW	4.5KW	4.5KW	4.5KW	4.5KW	4.5KW	4.5KW

Bottom paper automatic packaging machine
