Main F eatures
1. It is controlled by PLC with a touch screen.
2. The human-computer interface and user-friendly design make it easy and automatic to operate.

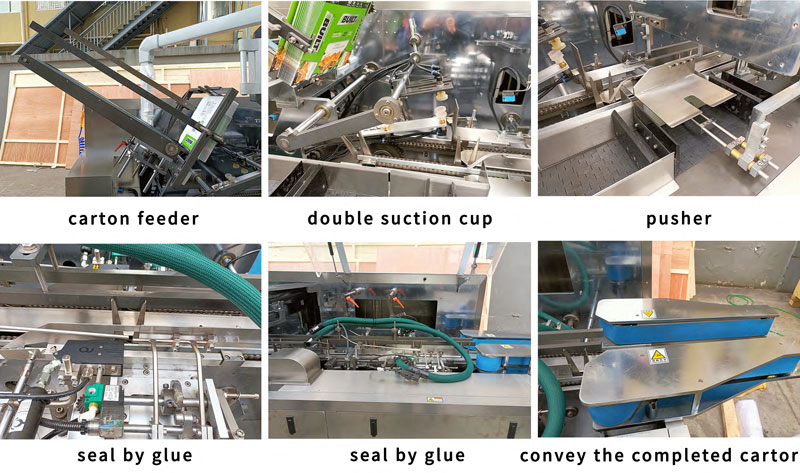

3. This cartoning machine can automatically deliver materials, open cartons,pack objects, seal packages.
4. This cartoner uses an electro-optical tracking system to save the material.Empty packages will be checked under this system.
5. It can package a large range of items and the adjustment is very easy.Packaging of different sizes can be switched quickly,
6. The protection system will shut machines down when packed items do not arrive in the correct position, and there is an overload protection device for the main cnive motorthat is both safe and reliable.
7. the cartoner can be applied to seal packages with hot melt glue and mechanic orushaccording to customer needs,

Technical Date
Model:CP-160/CP-190
Speed:30-60cartons/min / 30-50cartons/min
Carton Size:L(80-260)mm / L(70-350)mm
W(40-160)mm / W(100-200)mm
H(15-90)mm / H(20-90)mm
Carton Quality Requirement:250-350g/m2 / 250-350g/m2
Power Supply:380V 50HZ1.5kw / 380V 50HZ 1.5kw
Air Consumption:20.6mpa 20m3h / 20.6mpa 20m3/h
Machine Dimension:2500x 1020x 1980mm / 2500x 1020x 1980mm
Machine Weight:1800kg / 2000kg
