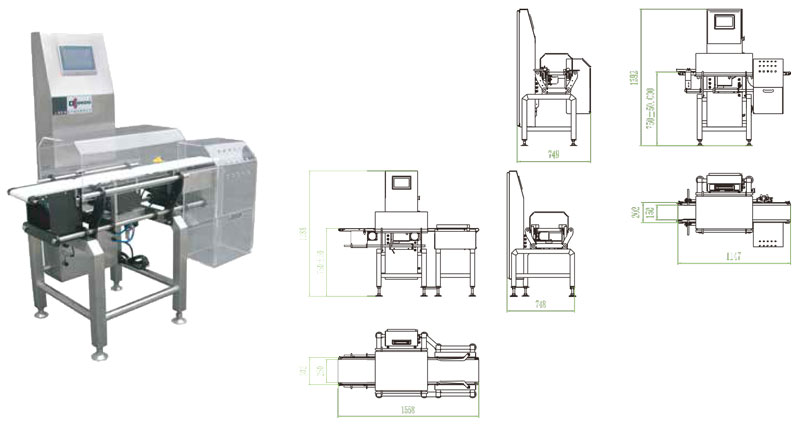

CP5W series of check-weigher machine is specially designed for full automatically remove the overweight
orultra- light products from the production line. When the continuous emergence of overweight or ultra-light weight
of the unqualified products, the equipment will give an alarm signal and givereminding or feedback to the automatic
computing equipment and adjust the measurement; for limited production sites, can be integrated using the metal detection system,
and add rejector to remove the qualifiedproducts in time.
| Model | CP5W-100 | CP5W-150 | CP5W-220 | |
| check range | 5g-100g | 5g-500g | 5g-1500g | |
| best accuracy | ±0.1g | ±0.2g | ±0.5g | |
| minimum scale | 0.1g | |||
| speed(max) | 300piece/min | 200piece/min | 150piece/min | |
| length of weighing platform | 200mm | 300mm | 400mm | |
| width of weighing platform | 100mm | 150mm | 220mm | |
| size of detected product | L | ≤100mm | ≤350mm | ≤300mm |
| W | ≤100mm | ≤150mm | ≤220mm | |
| notes | the accuracy will be affected by different product and workplace's environment customized is available | |||
