Comprehensive prevention of hard impurities(meeting HACCP、GMP、FDA、QS requirements)
1.Images can be stored automatically. AII images or alarm images are options can be set.
2.Defect products can be rejected automatically according to different confguration and rejector.
3.High sensitivity: metal: 0.2-0.4mm, glass 1.0-1.5mm, ceramic: 1.0-1.5mm
4.Report function: different kind of report according to diferent requirement.
| model | Dscan3100 | Dscan3200 | Dscan3350 | Dscan4100 | Dscan4200 | Dscan4350 | Dscan6200 | Dscan6350 | Dscan6480 |
| x-ray power | Max:100W | Max:200W | Max:350W | Max:100W | Max:200W | Max:350W | Max:200W | Max:350W | Max:480W |

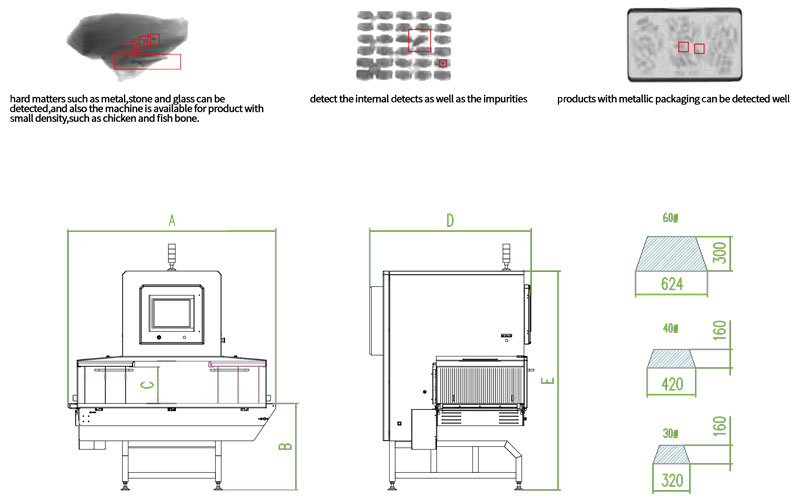

| pass size(w*h) | Max_width: 300 mm, Max_height: 160 mm | Max_width: 400 mm, Max_height: 160 mm | Max_width: 600 mm, Max_height: 300 mm | ||||||
| belt width | 350 mm | 450mm | 650 mm | ||||||
| belt height | 750±50 mm | ||||||||
| Belt speed | 5~60 m/min | ||||||||
| product weight | 370kg / 530kg / 650kg | ||||||||
| Working encironment | Temperature:-10~40°C(Industrial air conditioner) Humidity:30-90%， No frost(Temperature control: Dihumidifier) | ||||||||
| X-ray leackage | <1 μSv/h | ||||||||
| Power | AC220V 1.5KVA 50/60HZAC220V 1.5KVA 50/60HZ | ||||||||
| Bod material | Sus304 | ||||||||
| IPGR | IP66 | ||||||||
