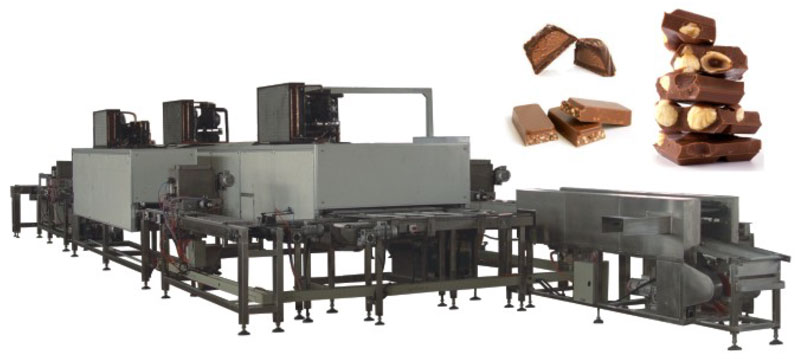

QJJ330(3+2) and JJ510(3+2) Chocolate Depositing Machine can both be used for the production of single color,
twocolors (left and right, up and down), three colors, big portion central fling, whole nuts fling, crushed nuts lling chocolateproducts,
big chocolate bar and etc. 3+2 refers to three chocolate depositing heads plus two nuts adding devices.
These2models have fully automatic functions of moulds pre-heating. depositing. moulds vibrating, moulds turning, coolingde-molding and conveying.

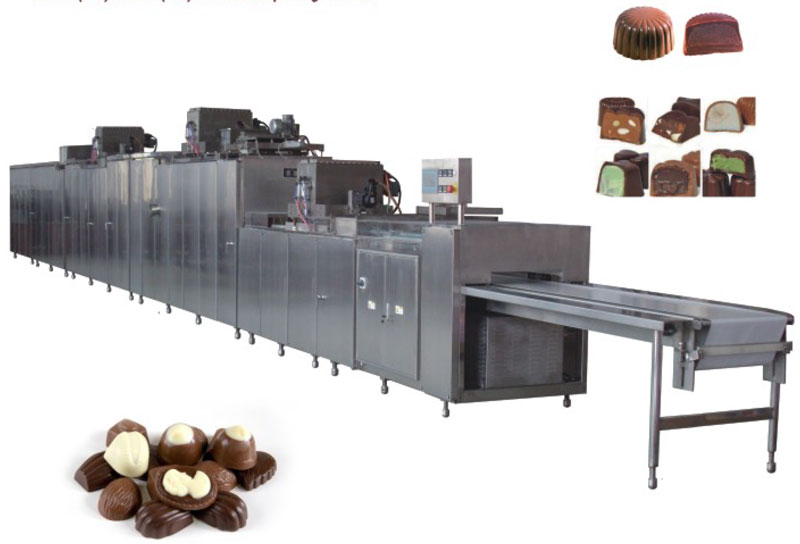

QJJ275(3+2) Chocolate Depositing Machine can be used for the production of single color, two colors (left andright, up and down),
three colors, big portion central filling, whole nuts illing, crushed nuts flling chocolate products,big chocolate bar and etc..
This machine has three chocolate depositing heads plus two nuts adding devices. Ithas fully automatic functions of two times moulds pre-heating,
three times depositing, one time moulds turning,three times moulds vibrating, three times cooling, de-moulding and conveying. Compared to QJJ330(3+2)
andQJJ510(3+2) modeis, the moulds in this machine move ina horizontal way.
| Type | Production capacity( moulds/minute) | Power(KW) | Mould number | Mould demensions(mm) | Weight (kg) | Outside dimension(mm) |
| QJJ330(3+2) | 6-15 | 28 | 380 | 330*200*30 | 5300 | 18000*1200*1900 |
| QJJ510 (3+2) | 6-15 | 47 | 380 | 510*200*30 | 7000 | 19000*1300*2500 |
| QJJ275(3+2) | 6-15 | 61 | 410 | 275*175*30 | 6500 | 15420*5270*2100 |
