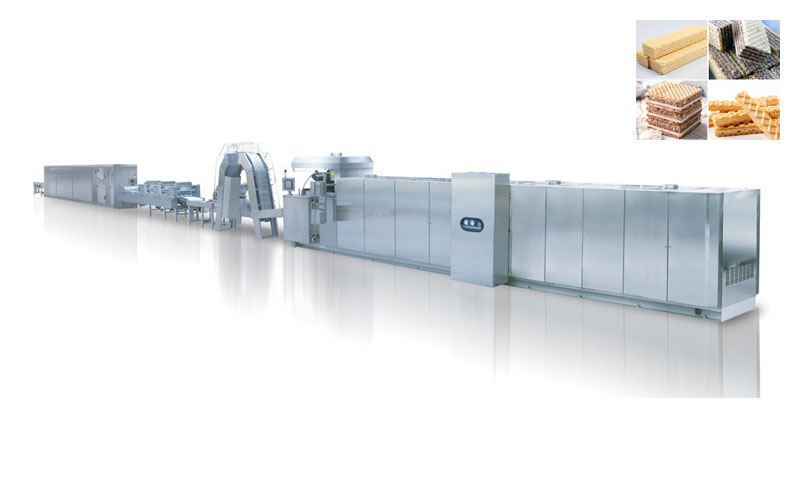

Full-automatic wafer production line features reliable performance,compact structure,small occupation,high yield,
lower energy consumption,convenient maintenance,simple operation.Operating system uses PLC programing
to make the process automated and easy control.
Main biscuit production we can make:

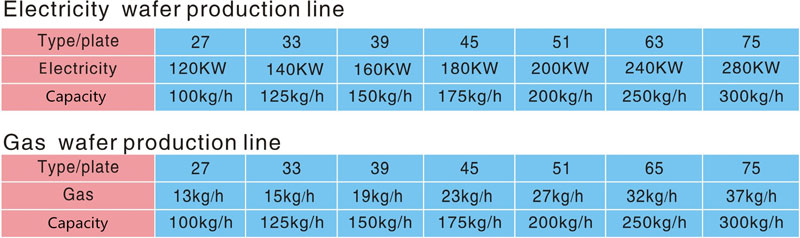

Capacity of the main machine:
Features and Characteristics：
1. All motor, electrical equipments are international standard---famous international brand or Chinese brand
2. Reasonable layout, compact structure, small occupation
3. High automatic, stable performance,machine can be controlled separately, simple operation and easy maintenance
4. Elements of wafer machine uses famous international or imported brand: motors from SEW Germany and bearings are high
temperature prevent SKF Germany. HMI operation panel and PLC unit can be Mitsubishi or Siemens. Appliances adopts Danfoss,
Schnerider, Omron. Conveyor belt is foodstuff PU quality.

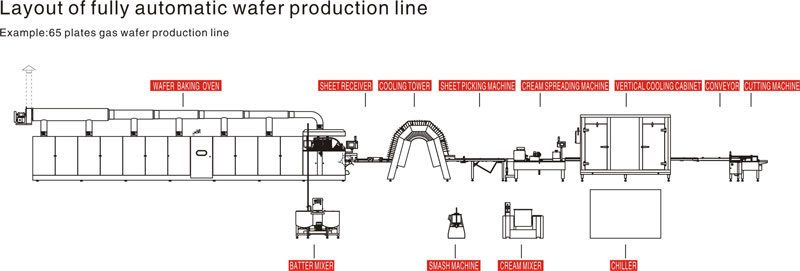

List of complete line for reference:
| NO | Name | Dimension (L×W×H):mm | Power KW | QTY |
| 1 | SH-R75 plates Baking oven | 14730×2000×2400 | 18.3 | 1 |
| 2 | Sheet receiver | 1723×1150×820 | 0.18 | 1 |
| 3 | Cooling tower | 2600×1050×2430 | 0.55 | 1 |
| 4 | Sheet Picking machine | 2200 ×1060×840 | 0.18 | 1 |
| 5 | Cream spreading machine (one color) | 2485×1200×1730 | 2.92 | 1 |
| 6 | Vertical cooling cabinet | 3700×1200×2612 | 18.83 | 1 |
| 7 | Conveyor | 2200×1050×980 | 0.18 | 1 |
| 8 | Cutting and laminating machine | 1545×2100×1100 | 0.75 | 1 |
| 9 | Batter Mixer | 1860×900×1600 | 5.5 | 1 |
| 10 | Cream mixer | 1700×800×1600 | 5.05 | 1 |
| 11 | Smash machine | 690×610×1250 | 3.0 | 1 |
| 12 | Total |
| 55.44 | 11 |

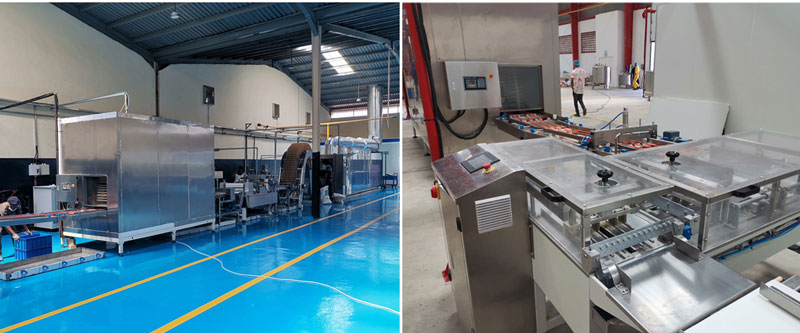

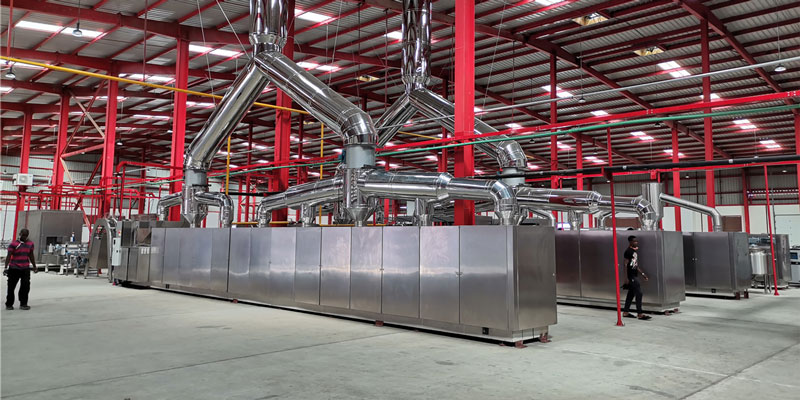

Wafer equipments in our customer’s workshop

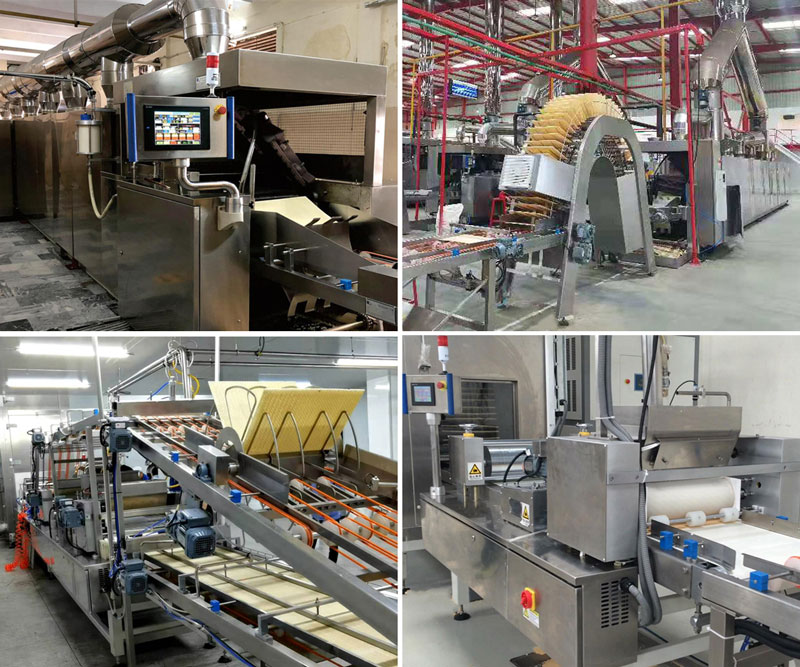

Wafer sheet baking from oven, automatically transfer to cooling tower and cooling in the air.
Cream will be automatically applied on wafer sheet,after the cooling from cooling cabinet, wafer book cut on cutting machine.

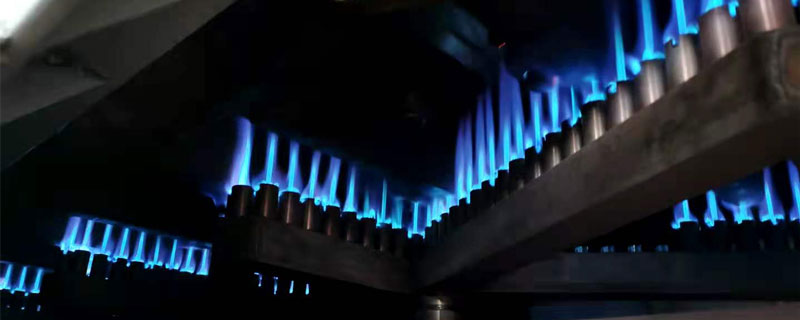

Baking oven has a great and effective burning inside oven chamber

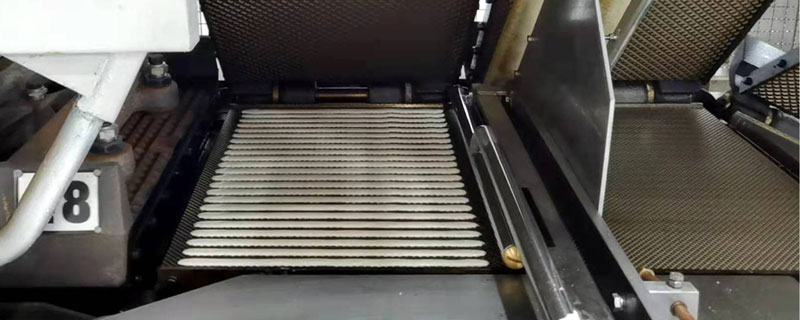

Automatic batter deposit with accurate positioning

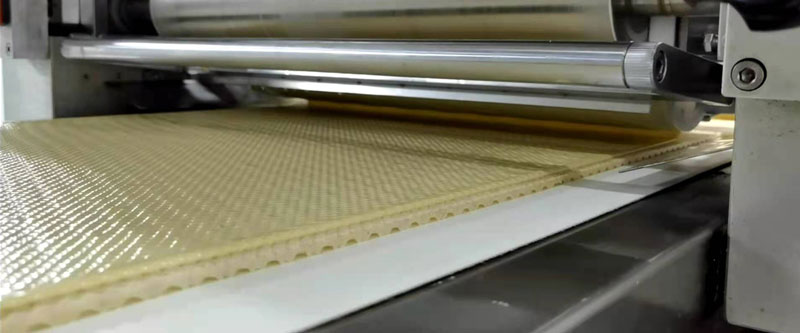

Cream applies on wafer sheet evenly by cream scraper

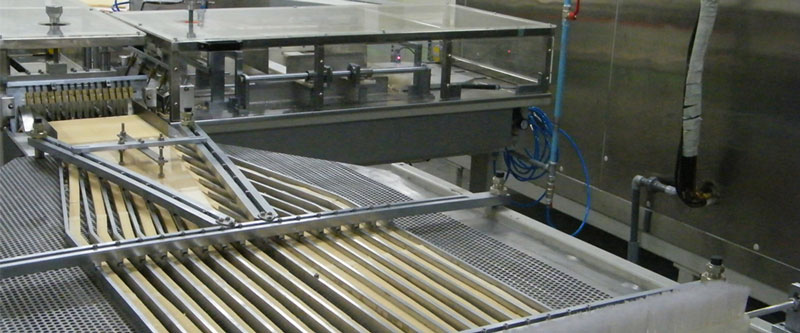

Wafer book cut in straight and smooth on Cutting machine by sanitation blade
Technical Parameters for each complete line:
| Item | Description | Parameters |
| 1 | Output | 2.5--7.5 tons/24 hours |
| 2 | Total power | 55.44 kw (380V 50Hz) |
| 3 | Rate of finished product | More than 98％ |
| 4 | Gas supply pressure | 0.15-0.2 Mpa |
| 5 | Air compression value | 0.9M3/Min/0.8Mpa |
| 6 | Baking plate size | 470mm×325mm~500mm×350mm |
| 7 | Effective cutting size | 455mm×315mm~485mm×340mm |
| 8 | Worker | 4 person ( excluding packing workers) |

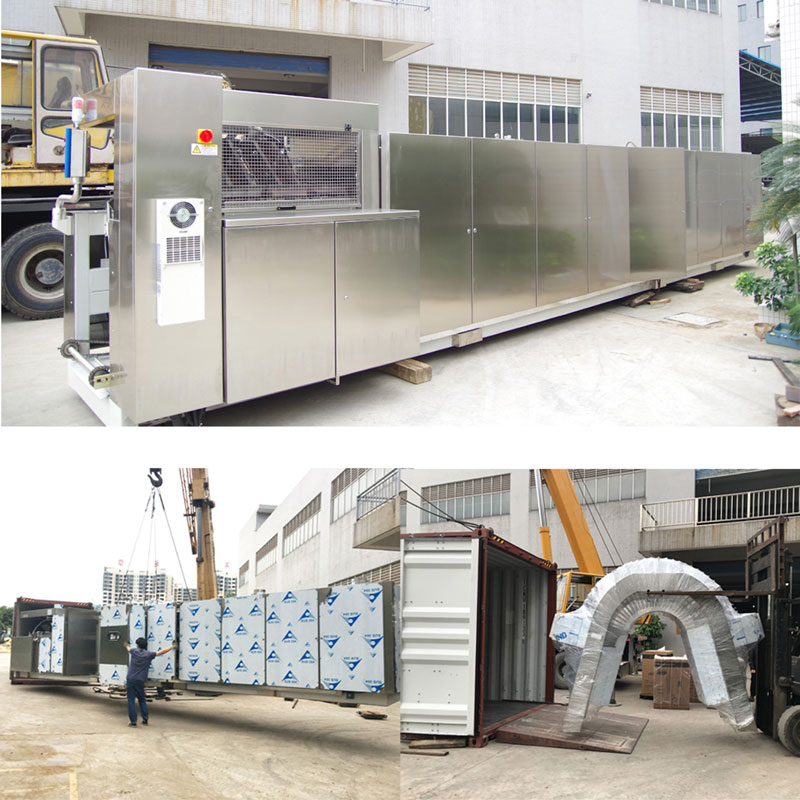

Machines are packed in standard seaworthy package and shipped by container
